Computer vision powered pedestrian detection for forklifts and material handling equipment. No RFID tags required. Real-time AI alerts for blind spot detection.
RFID tag-based pedestrian detection fails when workers don't wear tags or are visitors unfamiliar with tag requirements. Forklift blind spots create impossible visibility conditions for operators.
Multi-angle IR and HD cameras continuously monitor blind spots around forklift from all directions.
Real-time deep learning algorithm analyzes video to detect human presence, posture, and proximity.
AI identifies person in blind spot with greater than 95% accuracy regardless of tags, clothing, or lighting.
Operator receives audible beep and visual display alert. Load movement halted if unsafe proximity detected.
AI computer vision detects any person in blind spot regardless of tag compliance or wearing state.
Deep learning neural networks trained on 100k+ human silhouettes for robust detection across scenarios.
Thermal infrared cameras function in darkness, dust, fog, and rain for 24/7 detection reliability.

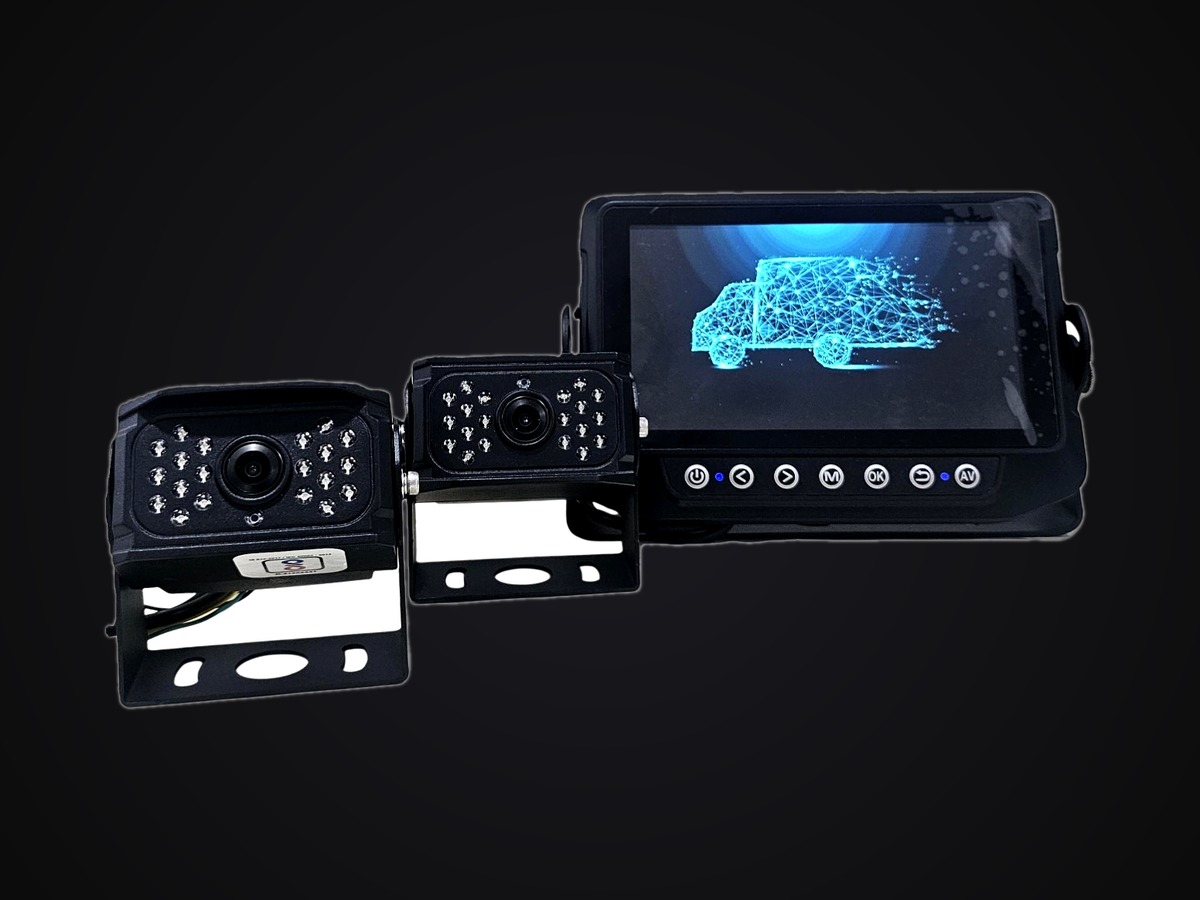

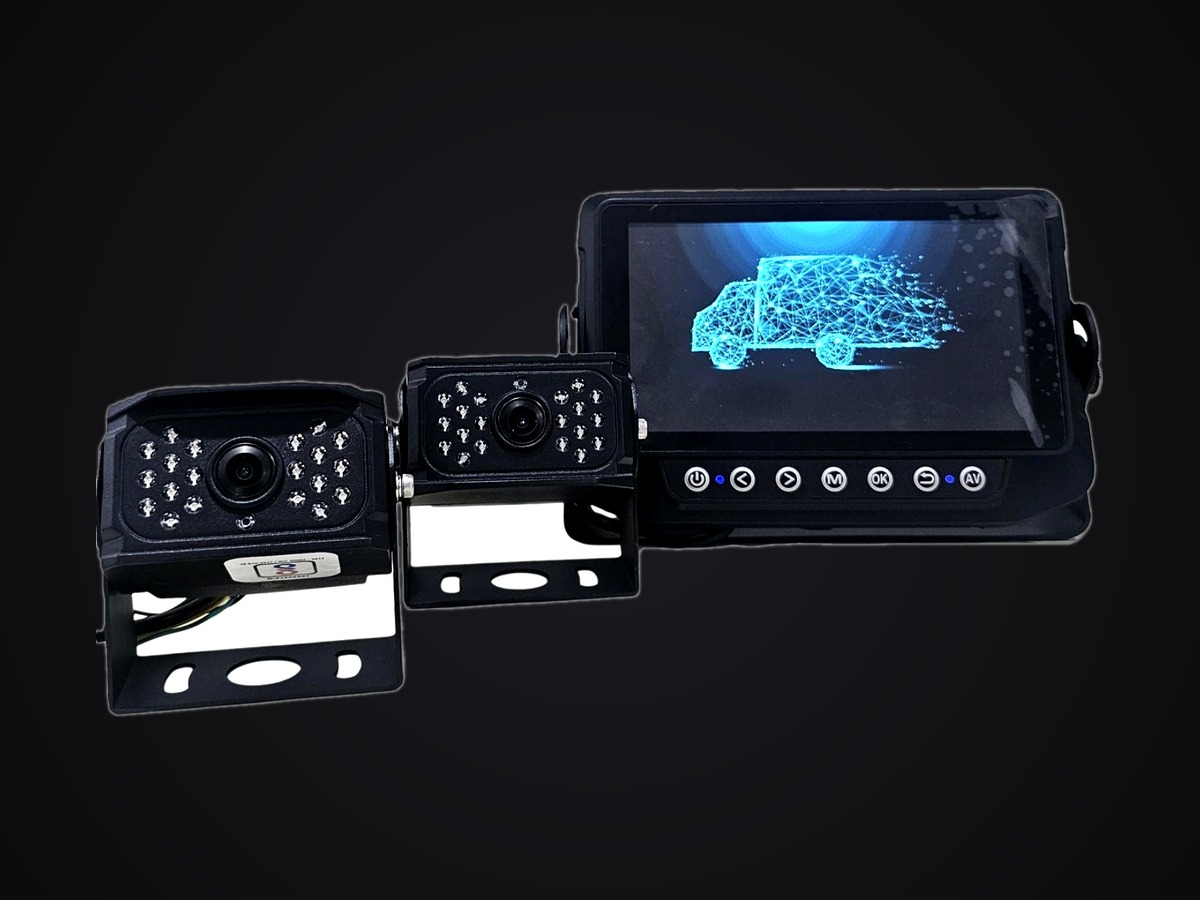

7-inch color display below mirror shows real-time camera feed with alert highlighting and detection zones.
Flexible installation: wired power and video on existing forklifts or wireless mesh network for retrofit.

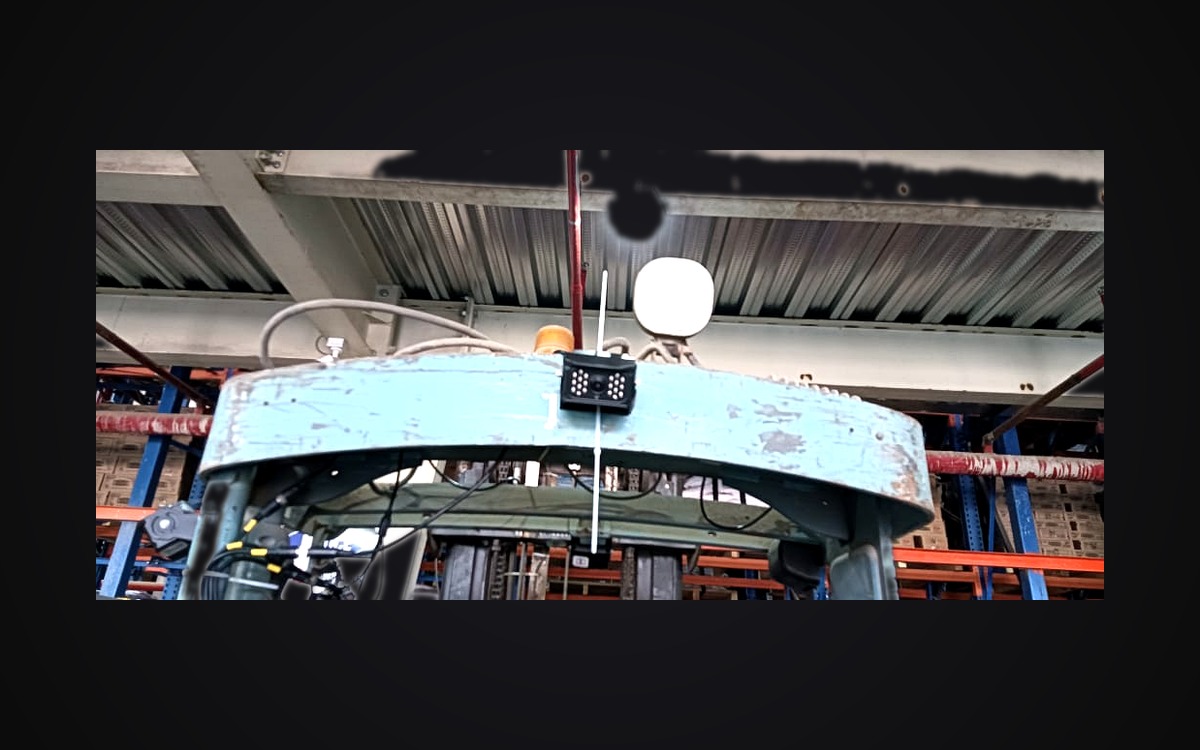

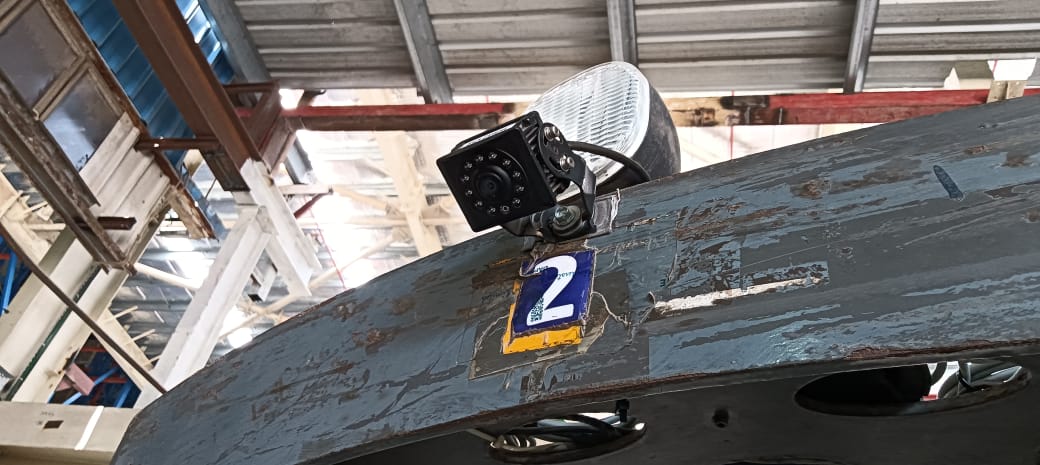

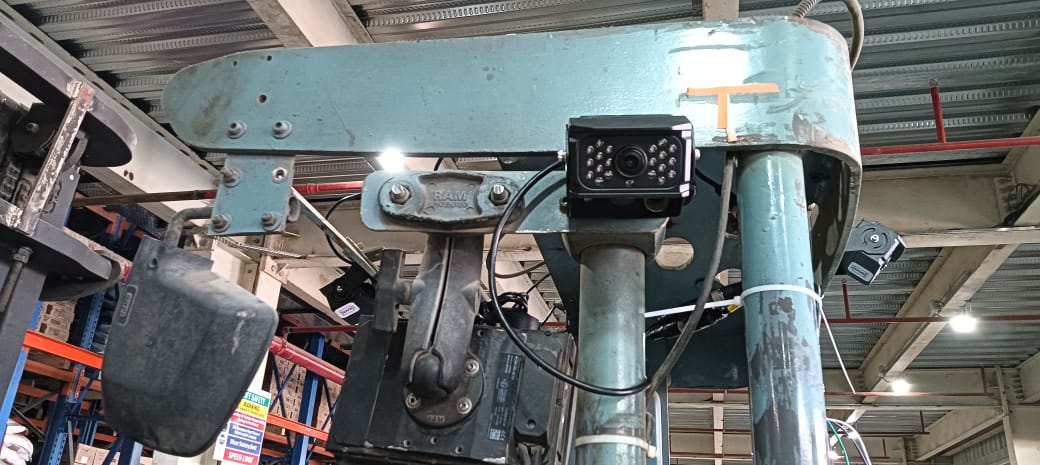

Front-view camera on load backrest, side cameras, and rear camera for complete blind spot coverage.
Data from product datasheet. Multiple sensor configuration options.
| Parameter | Value |
|---|---|
| Cameras | HD (1080p) + Thermal IR (640x480), Multiple angles |
| Detection Accuracy | Greater than 95% human detection, Less than 2% false positive rate |
| Response Time | Less than 200ms from detection to alert |
| Operating Temperature | -20°C to +70°C, IP67 sealed cameras |
| Power Supply | 12-24V DC, CAN-Bus integration with forklift |
| Alerts | Audible (95 dB), Visual display, Brake signal output |
| Display | 7-inch TFT Color Screen |
| Installation Type | Wired or Wireless Network |
| Processing Unit | GPU-Accelerated Edge Computing |
| Training Data | 100k+ human silhouettes for robust detection |
| Environmental Rating | IP67 sealed, dust and moisture resistant |
| Brake Integration | Forklift load brake compatible |
Can be integrated with all standard forklift control systems. Customized configurations available on request.
Protect workers in congested loading bays and high-traffic aisles where forklift blind spots are dangerous.
Production floor safety where moving materials interact with pedestrian assembly lines and work areas.
Parcel sorting and fulfillment centers with high-speed material handling and worker proximity risks.
Container terminal operations where forklifts move heavy cargo among dockworkers and pedestrians.
Large-scale warehousing with multiple forklift operations and complex pedestrian traffic patterns.
Analyze your forklift fleet models, blind spot patterns, and existing electrical infrastructure for camera placement.
Mount HD and thermal IR cameras on mast, backrest, and sides. Connect power and video cables to controller.
Install TFT display under mirror. Configure audible and visual alerts. Test brake signal integration.
Calibrate detection zones for your specific warehouse layout. Train system on facility-specific conditions.
