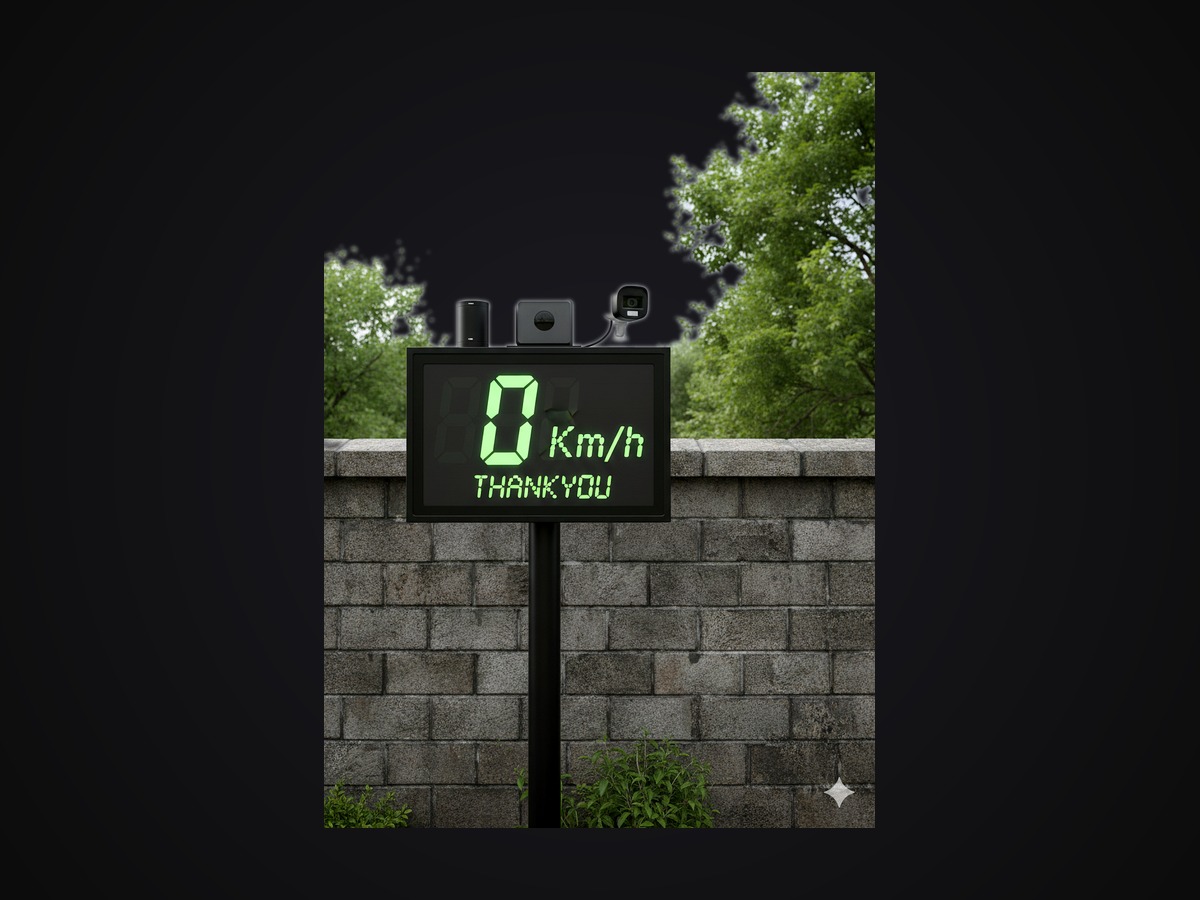

Radar Speed Display with Camera System

Speed monitoring with integrated camera for violation capture. Combines K-Band Doppler radar speed detection with timestamped photographic evidence, cloud-based analytics, and multi-site management.

Request Quote Download Datasheet

3-Digit Display Integrated Camera Cloud Analytics

The Problem

Speed violations drain safety budgets without accountability. Without photographic evidence, repeat offenders escape consequences. Facility managers lack visibility across multiple sites.

Speed violations without evidence — Standard speed displays deter but cannot prove violations. Without photographic evidence, repeat offenders face no consequences and behavior does not change.
No violation accountability — Facility managers know speeding occurs but cannot identify specific vehicles or drivers. Incident investigations lack the data needed to assign responsibility.
Multi-site management gaps — Organizations with multiple facilities have no centralized view of speed compliance. Each site operates independently with no comparative analytics or unified reporting.
Reactive safety culture — Without historical speed data and violation trends, safety teams can only respond to incidents rather than prevent them. No data means no predictive intervention.

How It Works

Radar Detection

24.15 GHz K-Band Doppler radar detects vehicles at 200–300 meter range with 99% accuracy, ±1 km/h precision. Dual-direction capable.

Camera Capture

When speed exceeds the configured threshold, the integrated camera captures timestamped violation evidence including vehicle image and speed reading.

Display & Alert

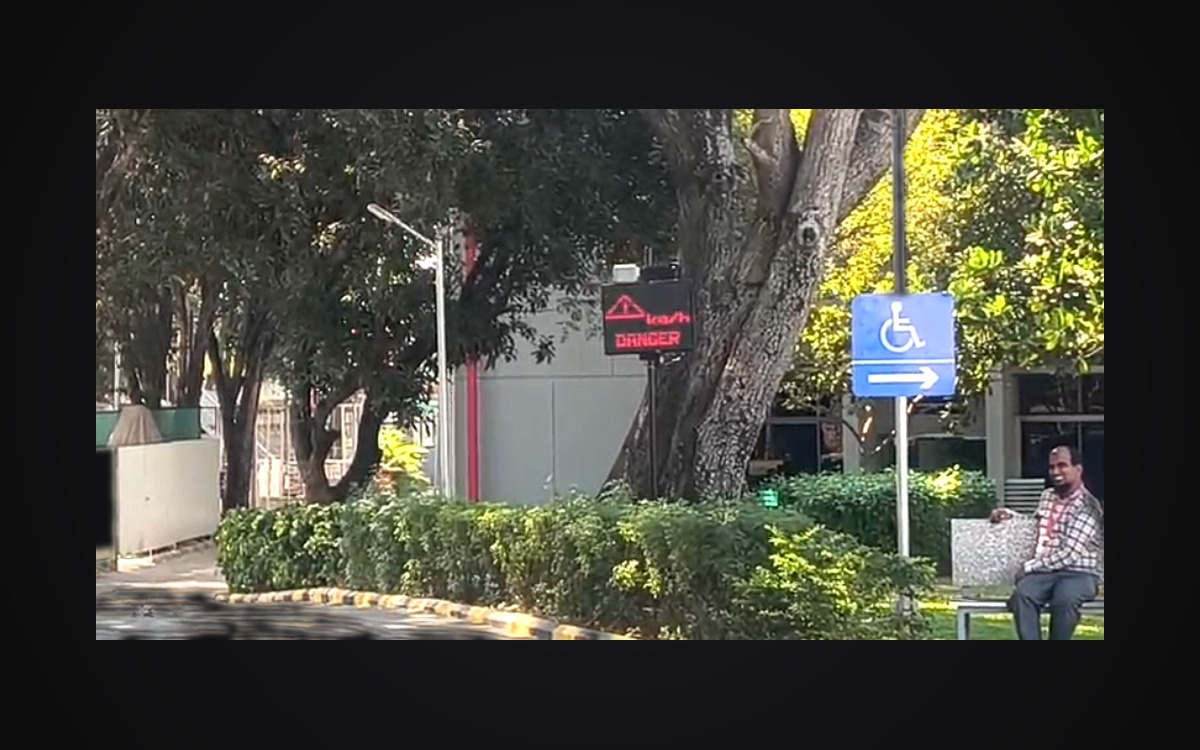

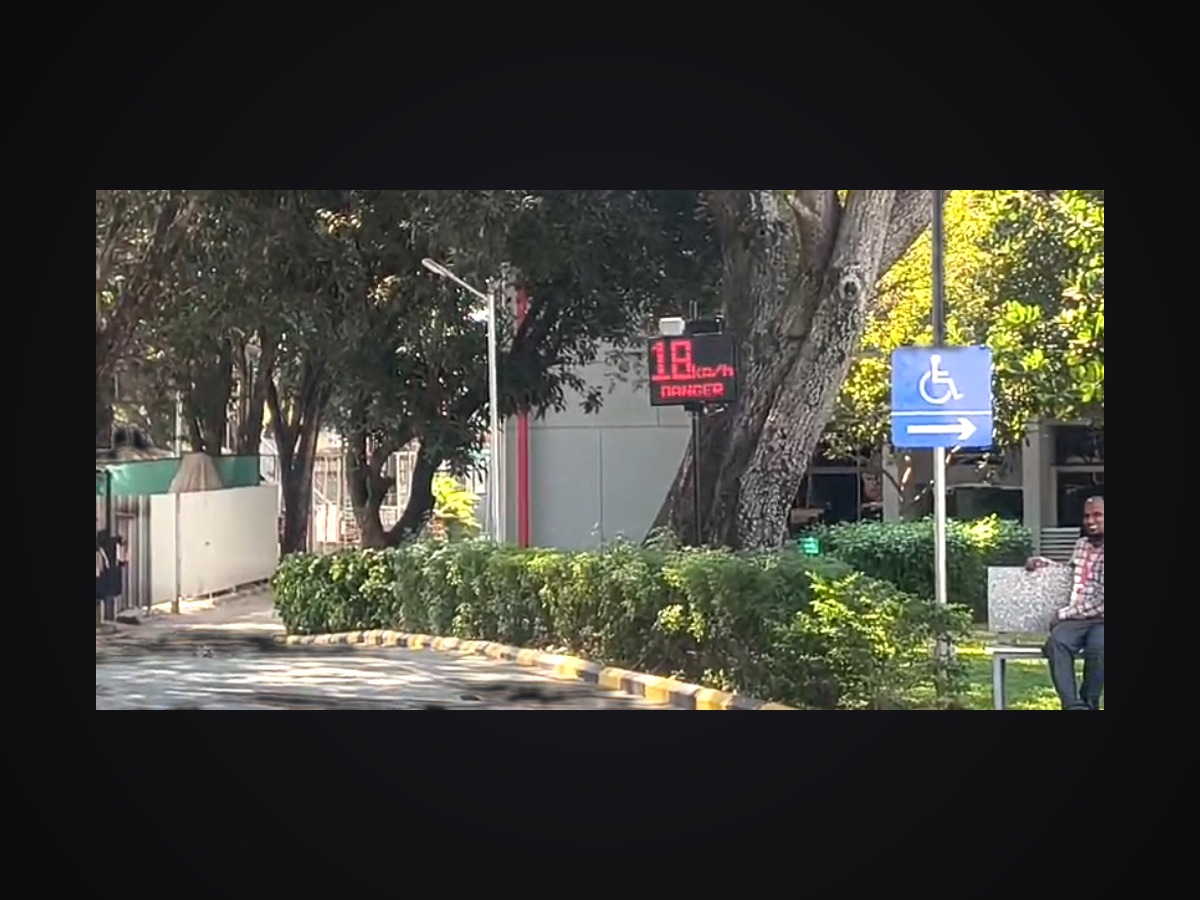

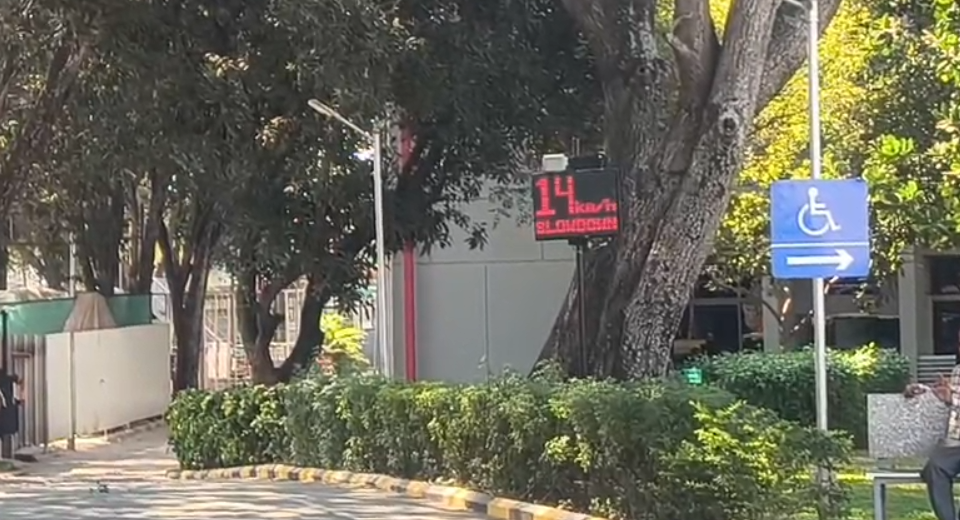

Ultra-bright 3-digit LED display shows real-time speed visible from 300+ meters. Color changes from green to red on violation. Optional siren triggers.

Cloud Analytics

Violation data, average/max speeds, and vehicle counts are uploaded to a central cloud application. Charts, reports, and multi-site dashboards available.

Key Features

Integrated Camera System

Captures violation data with timestamped photographic evidence. Links speed reading to vehicle image for accountability.

Cloud-Based Analytics

Central application to handle multiple sites. Average and max speed reporting. Estimated vehicle counts with time-stamped data for both road directions.

Dual Direction Detection

Detects vehicles approaching, leaving, or both. K-Band Doppler radar covers both directions on the same roadway.

Ultra-Bright LED Display

3-Digit, 12-inch green and red LEDs visible from 300+ meters. Customizable text messages and speed thresholds.

Customizable Messages

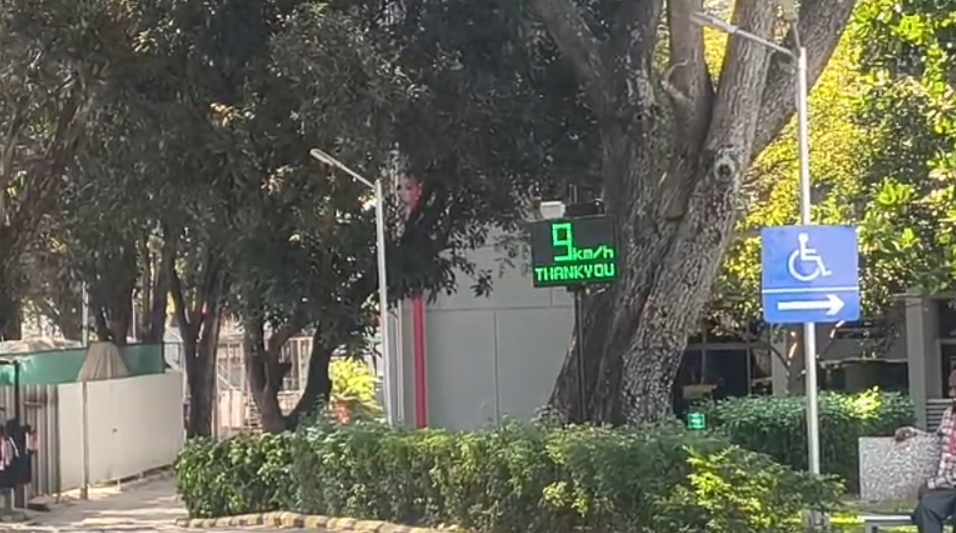

Pre-programmed or entirely personalized 1- or 2-line text messages. "SLOW DOWN", "THANK YOU", or custom facility warnings.

Multi-Power Options

Supports solar, 230 AC city power, or battery-operated mobile deployment. Flexible installation for any facility.

Technical Specifications

Data from product datasheet. Complete system specifications.

Parameter	Value
Radar Type	Dual Direction, 24.15 GHz, K-Band Doppler
Accuracy	99%, ±1 km/h
Speed Detection Range	5–300 km/h
Detection Range	200–300 meters
Direction Detection	Approaching, Leaving, or Both
Response Time	50 ms to 2000 ms
No. of Digits	3-Digit
Speed Digit Height	12 inches
LED Type	Ultra-Bright, Green and Red
Visibility	300+ meters
Text Display	Pre-programmed or Personalized, 1- or 2-Lines
Camera	Integrated, timestamped violation capture
Material	Mild Steel (MS)
Display Size	690 mm × 530 mm × 130 mm
Sensor Size	105 mm × 85 mm × 13 mm
Waterproof Rating	IP 66
Power Options	Solar (Optional), 230 AC, Battery (Optional)
Communication	Mini B-Type USB, LAN, GSM (Optional)
Local Storage	Violation data via locally connected devices
Cloud App	Central multi-site management
Speed Analytics	Average and Maximum Speed
Vehicle Count	Estimated, both directions
Memory Storage	Up to 1 Million Vehicles
Report Format	Charts and Detailed Report Extraction
Safety Features	Reverse Voltage, Short Circuit Protection
Mounting	Pole Mounting Brackets

System Integrations

Smart Outdoor Traffic Radar Speed Display Vehicle Approach Warning Fleet Management

Integrates with Controlytics traffic management and facility safety systems. Customized configurations available on request.

Applications

Factory Campuses

Internal road enforcement with camera evidence for repeat speed violators. Cloud analytics across multiple factory locations.

Warehouse Districts

Loading dock approach roads where speed violations threaten pedestrian safety. Camera captures provide accountability.

Mining Operations

Haul road speed enforcement with violation evidence. Multi-site dashboards for fleet-wide speed compliance.

Municipal Roads

School zones and residential speed monitoring with automated violation capture and reporting.

Logistics Parks

High-traffic distribution centers with multiple entry/exit points requiring centralized speed management.

Installation & Integration

Pole Mounting

Standard pole mounting brackets included. Fits existing infrastructure — light poles, signage posts, or dedicated mounting structures.

Power & Connectivity

Solar, 230 AC, or battery options. Communication via USB, LAN, or optional GSM. Plug-and-play deployment.

Camera Alignment

Integrated camera pre-aligned at factory. Field adjustment for lane coverage via web interface. No specialized optics needed.

Cloud Configuration

Central cloud app setup for multi-site management. Configure speed thresholds, alerts, and reporting dashboards remotely.
