Real-time vehicle speed detection and display for traffic calming. K-Band Doppler radar with ultra-bright LED display visible from 300+ meters. Available in 2-Digit and 3-Digit configurations.
Speeding in facility zones causes fatal pedestrian and equipment collisions. Without real-time speed monitoring, drivers ignore speed limits and enforcement is impossible.
24.15 GHz K-Band Doppler radar detects approaching or departing vehicles at distances up to 300 meters with 99% accuracy.
System calculates vehicle speed in real-time with ±1 km/h precision. Response time configurable from 50ms to 2000ms.
Ultra-bright green/red LEDs display speed visible from 300+ meters. Color changes to red when speed exceeds threshold. Optional siren activates.
Speed data is logged with timestamps. Ethernet/Wi-Fi connectivity allows remote configuration and traffic analytics.
Detects vehicles approaching, leaving, or both directions simultaneously on the same roadway.

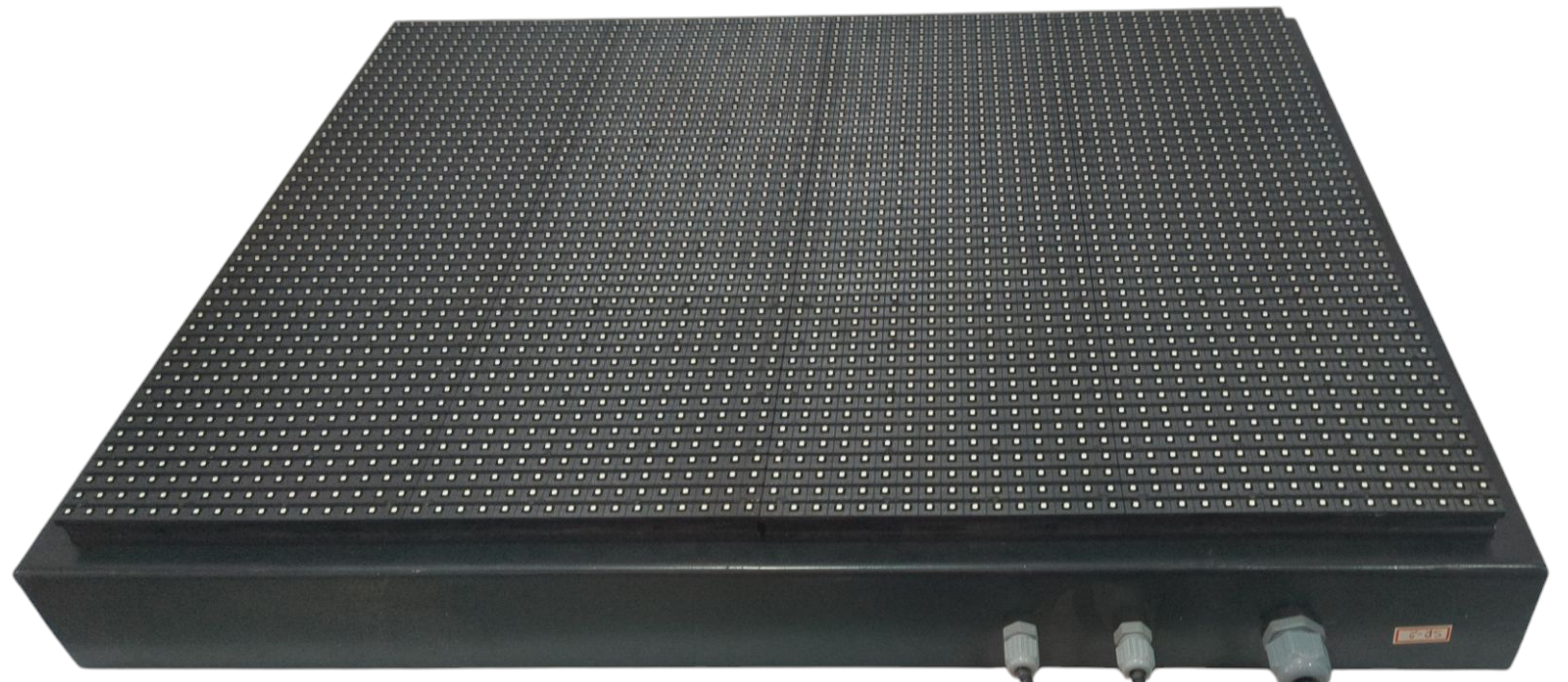

Green and Red LEDs with 300+ meter visibility. 12-inch speed digits. Readable in direct sunlight and at night.
Pre-programmed or entirely personalized 1- or 2-line text messages. Display "SLOW DOWN", "YOUR SPEED", or custom warnings.

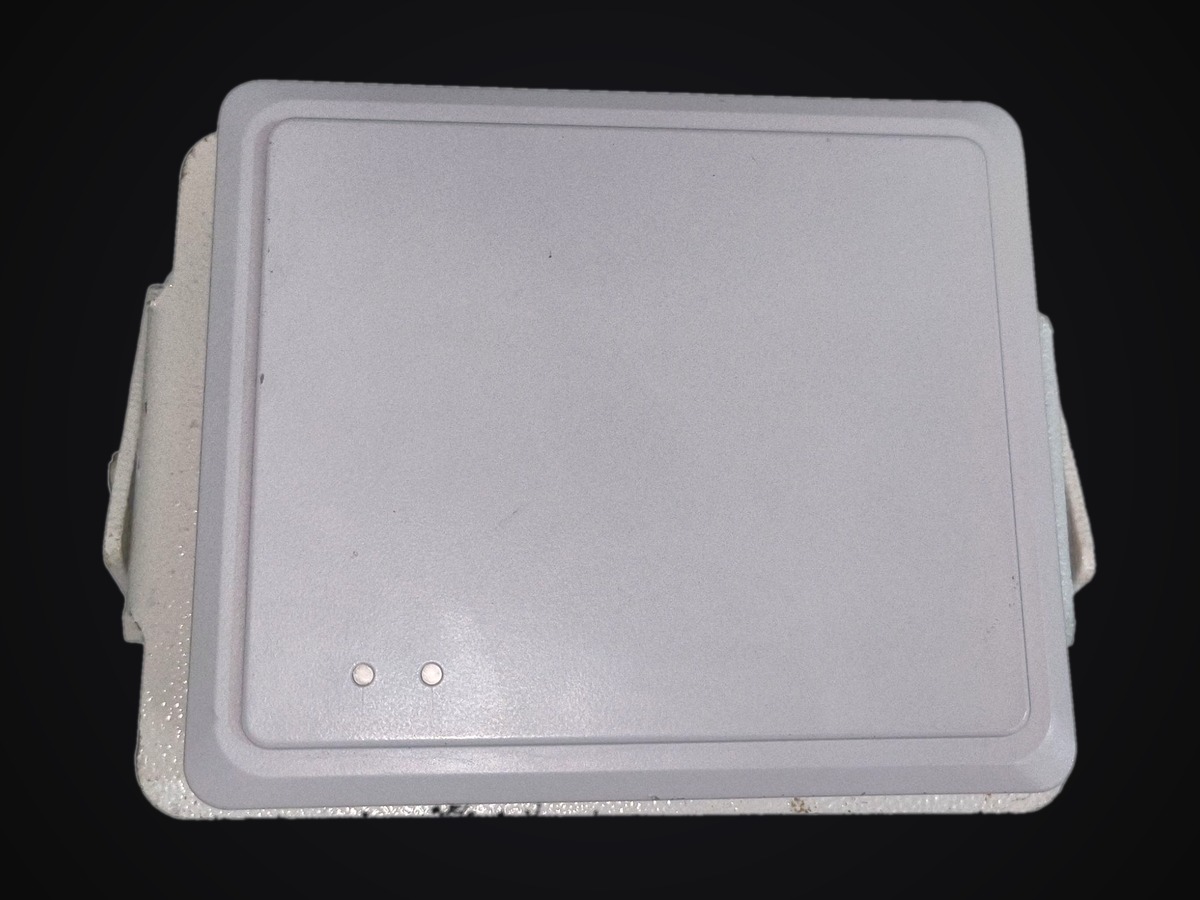

24.15 GHz K-Band Doppler radar. 99% accuracy, ±1 km/h. Speed detection range 5–300 km/h.
Configurable from 50ms to 2000ms. Captures speeds of fast-moving vehicles without delay.
Optional external siren for speed alerts. Triggers automatically when speed threshold is exceeded.
Data from product datasheet. Two configurations available.
| Parameter | Value |
|---|---|
| Radar Type | Dual Direction, 24.15 GHz, K-Band Doppler |
| Accuracy | 99%, ±1 km/h |
| Speed Detection Range | 5–300 km/h |
| Detection Range | 1–300 meters |
| Direction Detection | Approaching, Leaving, or Both |
| Response Time | 50 ms to 2000 ms |
| No. of Digits | 2-Digit / 3-Digit |
| Speed Digit Height | 12 inches |
| LED Type | Ultra-Bright, Green and Red |
| Visibility | 300+ meters |
| Text Display | Pre-programmed or Personalized, 1- or 2-Lines |
| Material | Mild Steel (MS) |
| Size (2-Digit) | 300 mm × 300 mm × 130 mm |
| Size (3-Digit) | 690 mm × 530 mm × 130 mm |
| Waterproof Rating | IP 66 |
| Power Supply | 230 VAC |
| Max Current | 1 Amp |
| Configuration Interface | Ethernet / Wi-Fi |
| Safety Features | Reverse Voltage, Short Circuit Protection |
Can be integrated with all other Controlytics facility safety solutions. Customized configurations available on request.
Speed enforcement on internal roads connecting production, warehousing, and office zones.
Loading dock access roads and aisle corridors where pedestrians and MHE share space.
Haul roads and equipment corridors where heavy vehicles must maintain strict speed limits.
Temporary roadways and access paths with variable speed requirements.
School zones, residential areas, and municipal roads requiring traffic calming.
Standard pole-mount brackets included. Installs on existing light poles, signage posts, or dedicated mounting poles. No civil work required.
230 VAC city power. Single-phase connection with reverse voltage and short circuit protection built in.
Factory-calibrated K-Band radar. Field verification via test vehicle at known speed. No specialized tools needed.
Ethernet or Wi-Fi configuration via web interface. Remote access for settings, threshold adjustment, and data extraction.
